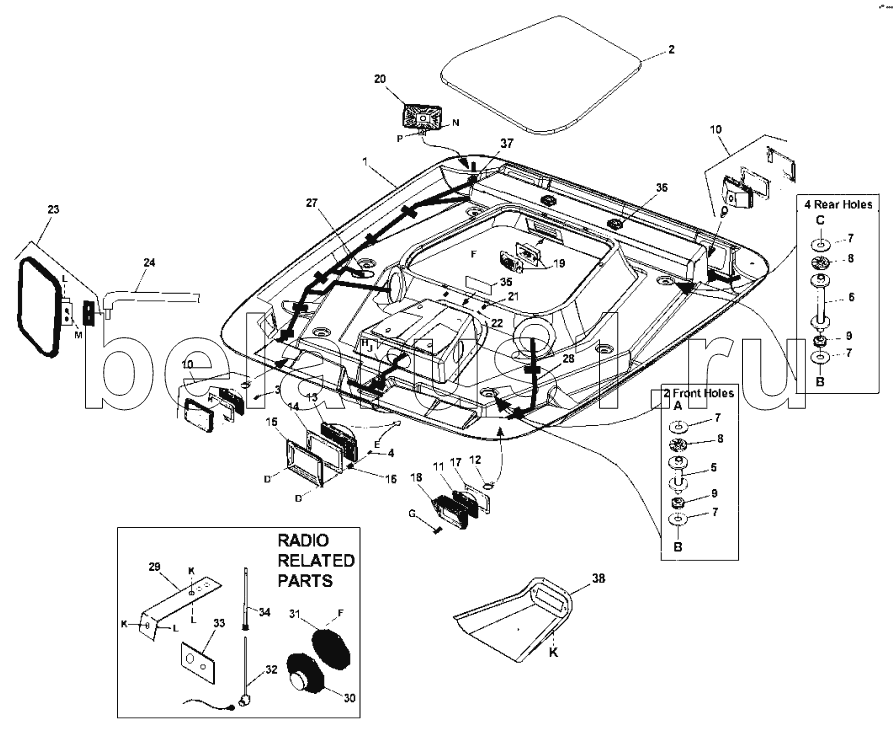

Каталог запасных частей к технике: MacDon-9250. CAB ROOF
1
2
3
4
5
6
7
7
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
27
28
29
30
31
32
33
34
35
36
37
38
A
B
B
C
D
D
E
F
F
G
K
K
K
L
L
L
M
N
P
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 45654 | ROOF | |
| 2 | 45759 | INSULATOR | |
| 3 | 42212 | Заказать Заказать Заказать Заказать | NUT |
| 4 | 42213 | NUT-SPRING | |
| 5 | 45783 | SPACER WELDT | |
| 6 | 45782 | SPACER | |
| 7 | 42592 | WASHER - FLAT | |
| 8 | 42045 | WASHER - RUBBER | |
| 9 | GROMMET | GROMMET | |
| 10 | 109103 | LIGHT | |
| 11 | 109112 | OPTICAL UNIT | |
| 12 | 109113 | BULB - 12V, 55W | |
| 13 | 109105 | LIGHT | |
| 109104 | 109104 | SOCKET | |
| 109109 | 109109 | BULB | |
| 109223 | 109223 | LIGHT | |
| 109224 | 109224 | BULB | |
| 14 | 109048 | GASKET | |
| 15 | 109106 | SUPPORT | |
| 16 | 109107 | SPRING | |
| 17 | 109110 | GASKET - WORK LIGHT | |
| 18 | 109114 | BEZEL | |
| 19 | 109123 | LIGHT – INTERIOR | |
| 20 | 109111 | LIGHT | |
| 109112 | 109112 | OPTICAL UNIT | |
| 109113 | 109113 | BULB - 12V, 55W | |
| 109114 | 109114 | BEZEL | |
| 21 | 50023 | LIGHT | |
| 22 | 50024 | NUT | |
| 23 | 45835 | MIRROR-CONVEX | |
| 24 | 45669 | MOUNT | |
| 27 | 25286 | CONDUIT | |
| 28 | 109226 | HARNESS | |
| 109228 | 109228 | HARNESS | |
| 109227 | 109227 | HARNESS | |
| 29 | 109115 | SUPPORT | |
| 30 | 109093 | SPEAKER – RADIO | |
| 31 | 109096 | SCREEN - SPEAKER GRILLE | |
| 32 | 109092 | ANTENNA – RADIO | |
| 33 | 109099 | BAR | |
| 34 | 109097 | GRIP | |
| 35 | 45399 | DECAL | |
| 36 | 42543 | SEAL | |
| 37 | 42415 | ВТУЛКА | |
| 38 | 45657 | PANEL | |
| A | 30947 | BOLT - HH 1/2 NC X 75 LG GR5 ZP | |
| B | 18697 | NUT - HEX LOCK DT 500-13UNC | |
| C | 109091 | BOLT | |
| D | 109108 | BOLT | |
| E | 109126 | NUT | |
| F | 30492 | SCREW-PHILIPS PAN HD # 8 X 3/4 LG ZP | |
| G | 30949 | SCREW-MACH PHILIPS PAN HD # 6 NC X 10 LG ZP | |
| H | 30228 | Гайка | |
| J | 18598 | Шайба | |
| K | 42284 | ВИНТ | |
| L | 18647 | NUT | |
| M | 21449 | BOLT - HH FLG (SERR FACE) 1/2 NC X 10 GR 5 ZP | |
| N | 50101 | NUT-FLG LOCK PREV TORQUE SM FACE M10-15 | |
| P | 30635 | WASHER-FLAT M10 ZP |
